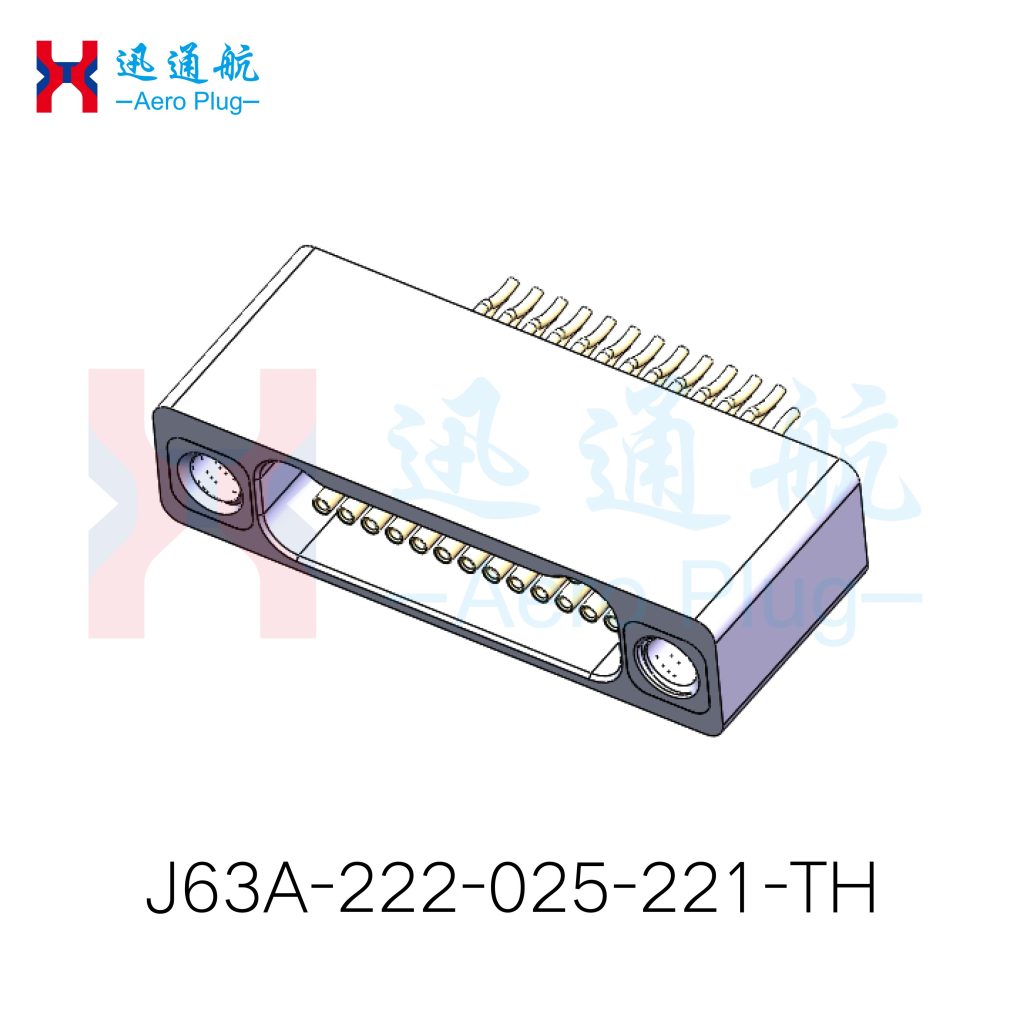

J63A-222-025-221-TH
Product features：
It is used in conjunction with a plug equipped with a locking screw.
It is used for soldering flexible printed circuit boards at the pin ends, with a maximum thickness of 0.25.

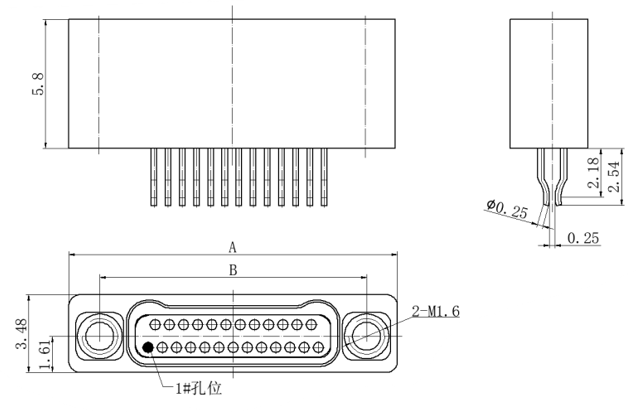

The overall dimensions of this series：
| Specification and model | size | |
| A | B | |
| J63A-222-009-221-TH | 9.63 | 6.86 |
| J63A-222-015-221-TH | 11.53 | 8.76 |
| J63A-222-021-221-TH | 13.44 | 10.67 |
| J63A-222-025-221-TH | 14.71 | 11.94 |
| J63A-222-031-221-TH | 16.61 | 13.84 |
| J63A-222-037-221-TH | 18.52 | 15.75 |
| J63A-222-051-221-TH | 22.96 | 20.19 |
| J63A-222-065-221-TH | 27.41 | 24.64 |
| J63A-222-069-221-TH | 28.68 | 25.91 |
Please contact us for more information about this product.
